DIY Landscape Step & Staircase Lighting: A Step-by-Step Guide to Transform Your Outdoor Space
Creating your own staircase lighting not only boosts safety after dark—it elevates the look of your entire landscape. Follow this guide to gather the right materials, tackle the install yourself, and add design flourishes that tie your steps seamlessly into the surrounding hardscape and plantings.

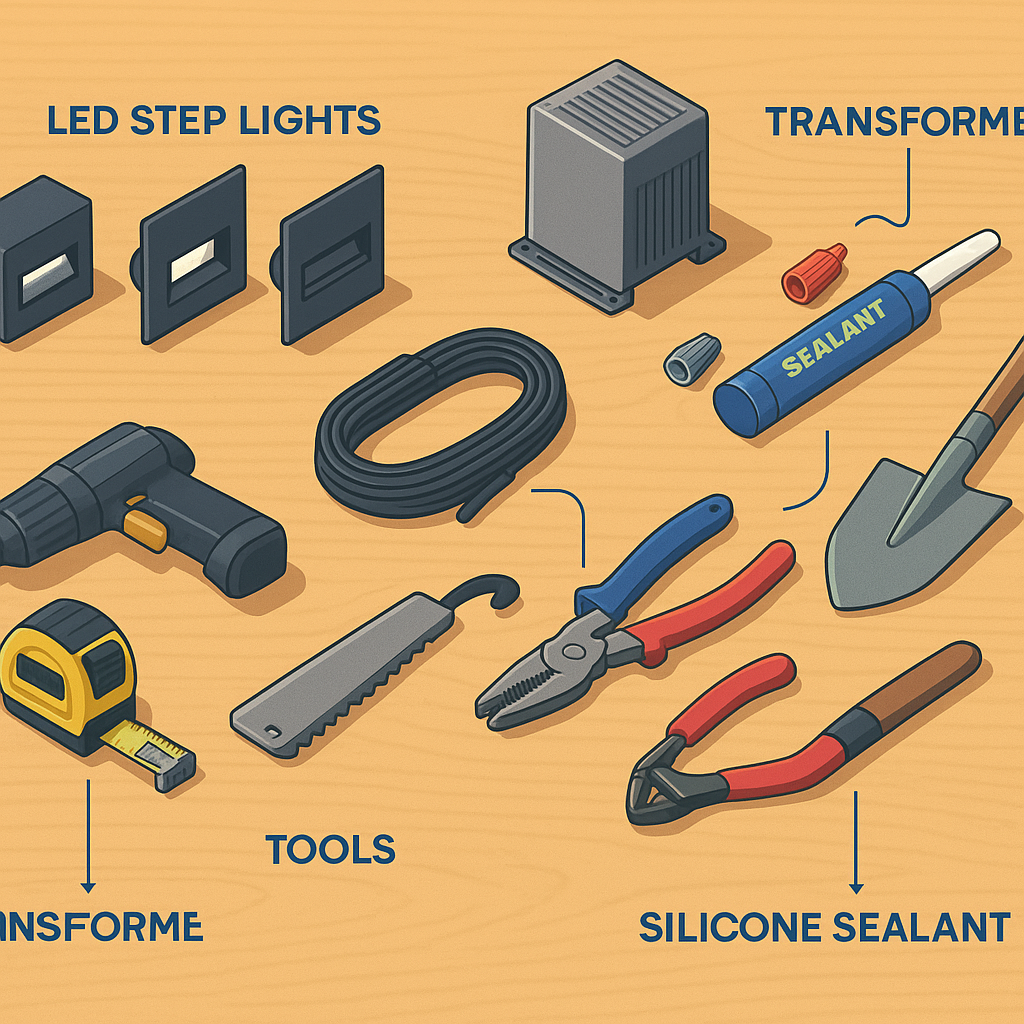

Materials & Tools
Materials
- Low-voltage LED step lights (recessed or surface-mount)
- 12V landscape lighting transformer
- Underground-rated low-voltage cable (12 AWG)
- Connectors & wire nuts rated for outdoor use
- PVC conduit or flexible hose (optional, for extra protection)
- Silicone sealant (exterior‐grade)
Tools
- Tape measure & chalk line
- Hand saw or rotary cutter (for cutting conduit)
- Drill with masonry or wood bit (matched to your fixtures)
- Wire stripper/crimper
- Shovel or trenching tool (for shallow cable runs)
- Voltage tester & ladder
- Safety gear: gloves, eye protection

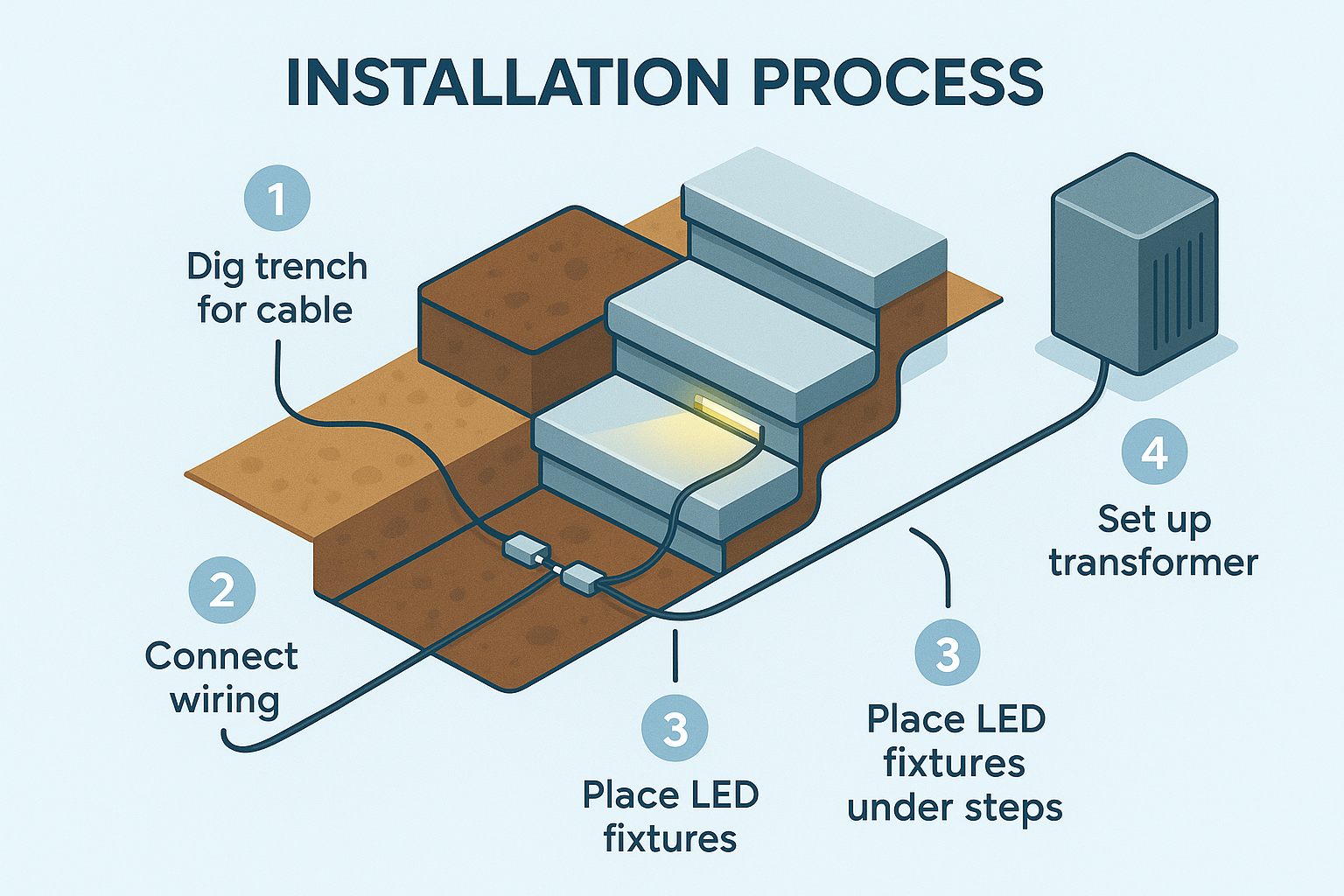

Staircase Lighting Installation Process
Step 1: Plan Your Layout
- Map your stairs on paper or with chalk in the field, marking lamp locations 12″–18″ apart.
- Locate a power source, ideally next to an exterior outlet or low-voltage transformer pad.
Step 2: Prep & Mount Fixtures
- Drill your mounting holes or recesses per the fixture template.
- Run conduit or cable from each hole back to your transformer location, burying cable 2–4″ deep.
Step 3: Wire & Connect
- Strip cable ends and use outdoor-rated connectors to join fixture leads to the main cable.
- Seal each connection with silicone to keep moisture out.
- Clip all runs into place under each step—use cable clips or conduit.
Step 4: Transformer & Testing
- Mount the transformer in a weather-protected spot, then connect your cable to its terminals.
- Power up and use a voltage tester to ensure each light comes on.
- Adjust beam angles as needed before finalizing with your trim screws.
Design Tips for Cohesive Staircase Lighting Design
- Match fixture style to materials – Use brushed stainless steel on natural stone, black-finish lights on dark decks.
- Balance light intensity – Aim for 5–10 lux on tread surfaces—bright enough for safety, soft enough for ambiance.
- Integrate with planting & hardscape – Hide wiring behind nearby plants or coping edges. Combine uplights in adjacent flowerbeds for layered effect.
- Think in layer – Pair step lights with subtle path lights or wall-wash fixtures to unify the entire outdoor scene.
Transform your staircase into a safe, inviting focal point—and enjoy evenings spent outdoors under perfectly placed light. Ready to get started? Gather your materials, set aside a weekend, and bring your stair design to life with custom staircase lighting!
